Chain & Component l JDT Theipa Point l T P- S

Theipa Point
TheipaⓇ Point-S


The New Generation of attachment swivels

Grade 10 ENORM material allows for an increase in working load limit of 25% without increasing swivel size compared to TAWSK.
The advantages:

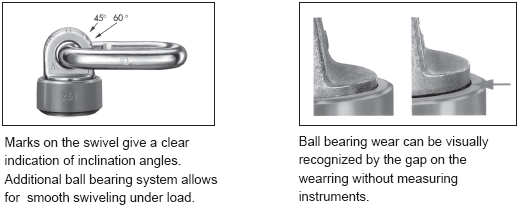

- Marks on the swivel give a clear indication of inclination angels.
- Additional ball bearing system allows for smooth swiveling under load.
- Crimpfeature on the link prevents the link from kinking.
- Both internal and external surfaces are protected against corrosion by a tough galvanized coating.
- Improved swivel to surface is due to special machining.
- Ball bearing wear can be visually recognized by the gap on the wear ring without measuring instruments.

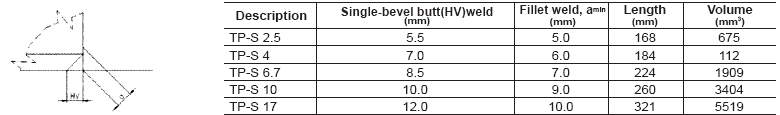

"THEIPA"-Point-S(TP-S)-welding seam
