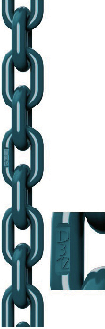

| Grade 12 – MAXNORM 12 |
| ▶ |
Short link chains for lifting purposes |
|
|
|
Code |
nominal size |
WLL |
MPF |
BF |
weight |
ident no. |
mm |
t |
kN |
kN |
kg / m |
MAXNORM K 8 |
8 × 24 |
3,0 |
73,5 |
118 |
1,6 |
0312108003 |
MAXNORM K 10 |
10 × 30 |
5,0 |
123,0 |
196 |
2,6 |
0312110003 |
MAXNORM K 13 |
13 × 39 |
8,1 |
199,0 |
318 |
4,1 |
0312113003 |
|
| |
 |
Allowed working load limits according to EN 818-6 for different chain temperature
- 60°C bis | to 200°C 100 %
200°C bis | to 250°C 90 %
250°C bis | to 300°C 75 %
Once the MAXNORM 12 - chain has cooled down to room temperature it can be again used at 100 %.
Product advantages MAXNORM 12
 |
The breaking strength of MAXNORM 12 is 25 % higher than that of grade 10 and even up to 60 % higher than that of grade 8 |
|
|
The world's lightest chains in grade 12 |
|
|
Low temperature durability up to -60° C |
|
|
The surface of all products is powder coated in the shade 'Ocean blue' |
|
|
Easy to use and optimised service life |
|
|
100 % Made in Germany |
|
|
|
| |
| ▶ |

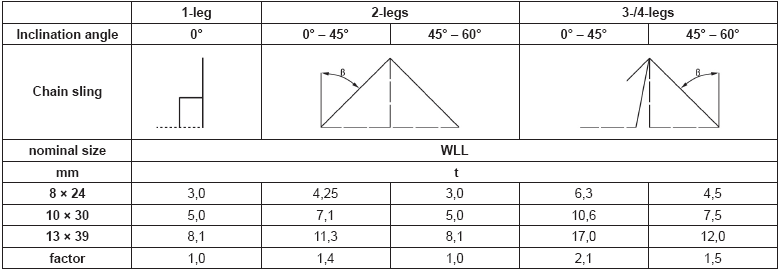

Chain sling Working load limits Grade 12 |
|
|
| |
 |
|
| In the case of asymmetric loads load capacities are to be reduced by 50 %. |
| |
| ▶ |

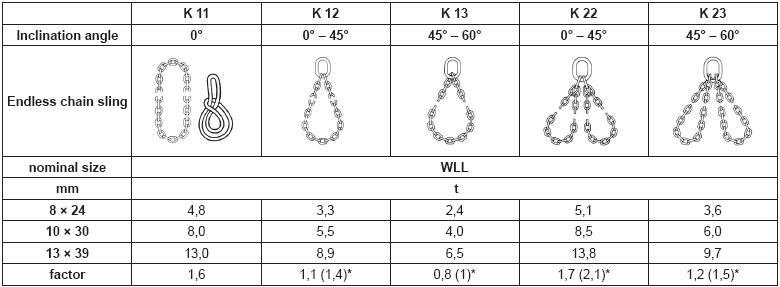

Endless chain sling Working load limits Grade 12 |
|
|
| |
 |
|
| * In the event of appropriate usage – not with choke hitch, no sharp edges etc. – see WLL table above chain sling. |
| |
