Chain & Component l JDT Theipa Point l T P- F

Theipa Point

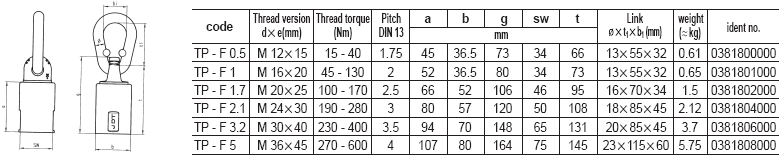

TheipaⓇ Point-F


The New Generation of attachment swivels

The THEIPA Point - F with an internal thread has been newly included in the range.
- All of the THEIPA Point's advantages have also been considered in this case.
- The thread's depth is 1.25 times its diameter as a rule.

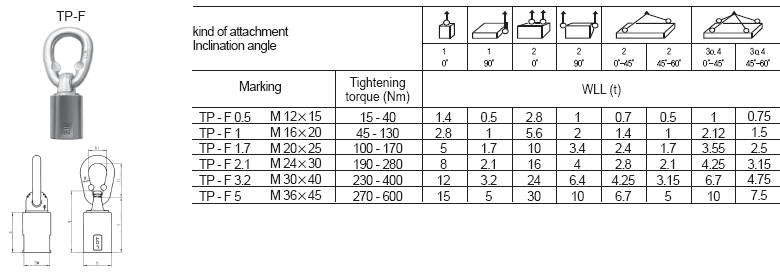

- The stamped WLL applies to the kind of attachment by 90°
- Bolts of the quality class 10.9 crack-tested are permitted as connecting elements.
- Different threaded versions and lengths can be supplied on request.
