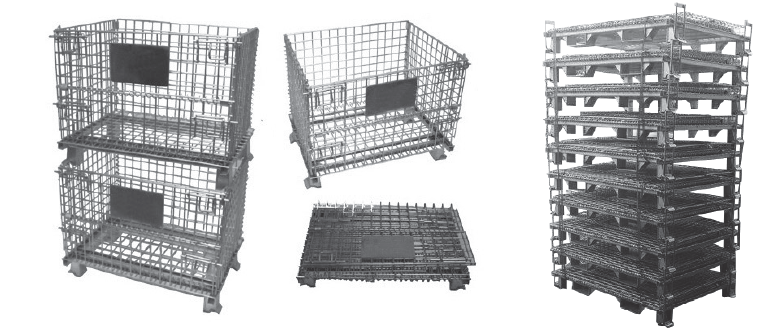

Rope l MESH CONTAINER



Detail informations of warehouse storage cage:


Product' item

Green Power Folderable Mesh Container

External size

1000×800×840mm

Inner size

950×750×700mm

Wire Dia.

6.0mm

Mesh

50×50mm

Loading capacity

1200kg

Theorecial of 20GP loading

2200pcs

Theorecial of 40GP loading

480pcs

※ 상기 size는 참고용이며, 귀사의 요청에 따라 주문 생산/공급 합니다.

Sturcture and technology:
  1. Bending-handle, easy to switch freely
2. U-shaped bracket of the bottom, enhanced bearing strength.
3. With a clip fixed in top , to ensure butterfly cage hinge strength
4. Multi-spot welding process to ensure the durability
5. Special foot cup structure to ensure the storage cage's bearing and stability of the keap high.
6. Spiral spring hinged mesh, can be foldable when not in use.
7. Enabling structure to ensure the piled high stable and reliable of the storage mesh cage.
8. Independent bolt fixed, stacked, convenient when open the butterfly cage

Advantages of warehouse storage cage:
  1 .Standardized specifications, be clear at a glance, easy to manage
2. International standardization logistics containers, widely used in raw materials, semi finished and finished turnover and storage.
3. Simple operation, versatility, Long service life
4. Full material can be stacked up to four high.
5. Collapsible stacking, greatly reducing the space occupied when no needs to use.
6. Surface treatment: environmentally friendly zinc trivalent chromium, does not rust.
7. With forklifts, hydraulic pallet trucks, wheels and front and rear traction equipment.
8. It can be widely used in transportation, handling, loading and unloading, material storage, etc. all aspects of logistics
